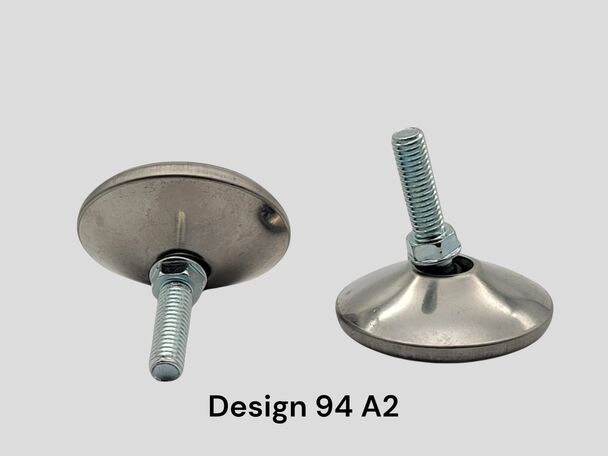

Part 94A2
Adjustable tilt glide with stainless steel cover.
Axial static load max 75 kg. Max angle 22º
| SKU | Threadsize / Stud length | Base diameter | Hexagon key wide | Base height | |
|---|---|---|---|---|---|
| 94D30A2M 8X25 1 | M8X25 | 30 | 12 | 14 | |
| 94D30A2M 8X34 1 | M8X34 | 30 | 12 | 14 | |
| 94D30A2M 8X50 1 | M8X50 | 30 | 12 | 14 | |
| 94D30A2M10X25 1 | M10X25 | 30 | 12 | 14 | |
| 94D30A2M10X34 1 | M10X34 | 30 | 12 | 14 | |
| 94D30A2M10X50 1 | M10X50 | 30 | 12 | 14 | |
| 94D30A2M12X20 1 | M12X20 | 30 | 14 | 14 | |
| 94D30A2M12X40 1 | M12X40 | 30 | 14 | 14 | |
| 94D30A2M12X80 1 | M12X80 | 30 | 14 | 14 | |
| 94D35A2M 6X25 1 | M6X25 | 35 | 12 | 14 | |
| 94D35A2M 8X25 1 | M8X25 | 35 | 12 | 14 | |
| 94D35A2M 8X34 1 | M8X34 | 35 | 12 | 14 | |
| 94D35A2M 8X50 1 | M8X50 | 35 | 12 | 14 | |
| 94D35A2M10X25 1 | M10X25 | 35 | 12 | 14 | |
| 94D35A2M10X34 1 | M10X34 | 35 | 12 | 14 | |
| 94D35A2M10X50 1 | M10X50 | 35 | 12 | 14 | |
| 94D35A2M12x20 1 | M12X20 | 35 | 14 | 14 | |
| 94D35A2M12x80 1 | M12X80 | 35 | 14 | 14 | |
| 94D40A2M 8X25 1 | M8X25 | 40 | 12 | 15,5 | |
| 94D40A2M 8X34 1 | M8X34 | 40 | 12 | 15,5 | |
| 94D40A2M 8X50 1 | M8X50 | 40 | 12 | 15,5 | |
| 94D40A2M10X25 1 | M10X25 | 40 | 12 | 15,5 | |
| 94D40A2M10X34 1 | M10X34 | 40 | 12 | 15,5 | |
| 94D40A2M10X50 1 | M10X50 | 40 | 12 | 15,5 | |
| 94D40A2M12X20 1 | M12X20 | 40 | 12 | 15,5 | |
| 94D40A2M12X40 1 | M12X40 | 40 | 14 | 15,5 | |
| 94D40A2M12X80 1 | M12X80 | 40 | 14 | 15,5 | |
| 94D45A2M 8X25 1 | M8X25 | 45 | 12 | 15,5 | |
| 94D45A2M 8X34 1 | M8X34 | 45 | 12 | 15,5 | |
| 94D45A2M 8X50 1 | M8X50 | 45 | 12 | 15,5 | |
| 94D45A2M10X25 1 | M10X25 | 45 | 12 | 15,5 | |
| 94D45A2M10X34 1 | M10X34 | 45 | 12 | 15,5 | |
| 94D45A2M10X50 1 | M10X50 | 45 | 12 | 15,5 | |
| 94D45A2M12X20 1 | M12X20 | 45 | 14 | 15,5 | |
| 94D45A2M12X40 1 | M12X40 | 45 | 14 | 15,5 | |
| 94D45A2M12X80 1 | M12X80 | 45 | 14 | 15,5 | |
| 94D50A2M 8X25 1 | M8X25 | 50 | 12 | 15,5 | |
| 94D50A2M 8X34 1 | M8X34 | 50 | 12 | 15,5 | |
| 94D50A2M 8X50 1 | M8X50 | 50 | 12 | 15,5 | |
| 94D50A2M10X25 1 | M10X25 | 50 | 12 | 15,5 | |
| 94D50A2M10X34 1 | M10X34 | 50 | 12 | 15,5 | |
| 94D50A2M10X50 1 | M10X50 | 50 | 12 | 15,5 | |
| 94D50A2M12x80 1 | M12X80 | 50 | 14 | 15,5 | |
| 94D60A2M 8X25 1 | M8X25 | 60 | 12 | 15,5 | |
| 94D60A2M 8X34 1 | M8X34 | 60 | 12 | 15,5 | |
| 94D60A2M 8X50 1 | M8X50 | 60 | 12 | 15,5 | |
| 94D60A2M10X25 1 | M10X25 | 60 | 12 | 15,5 | |
| 94D60A2M10X34 1 | M10X34 | 60 | 12 | 15,5 | |
| 94D60A2M10X50 1 | M10X50 | 60 | 12 | 15,5 | |
| 94D60A2M12X20 1 | M12X20 | 60 | 14 | 15,5 | |
| 94D60A2M12X40 1 | M12X40 | 60 | 14 | 15,5 | |
| 94D60A2M12X80 1 | M12X80 | 60 | 14 | 15,5 |
