Star knobs, part no. S

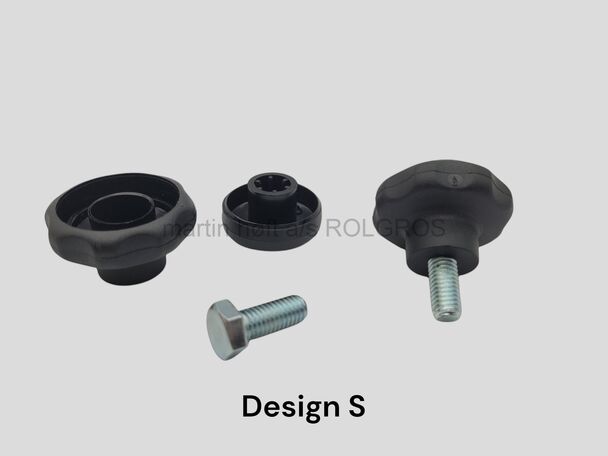

Star knobs with (for) threaded bolt, (three-part assembled)
This star knob can be bought as top and bottom part for self-assembling, without screw
Material: PA
| SKU | Threadsize / Stud length | Diameter of boby of handle, (A | Diameter of handwheel , | Height of body of handle ( l1 ) | Height of handle, ( B ) | |
|---|---|---|---|---|---|---|
| S400M 6X16 1 | M6/12 | 18 | 40 | 10 | 26 | |
| S400M 6X20 1 | M6/16 | 18 | 40 | 10 | 26 | |
| S400M 6X30 1 | M6/26 | 18 | 40 | 10 | 26 | |
| S400M 8X20 1 | M8/17 | 18 | 40 | 10 | 26 | |
| S400M 8X25 1 | M8/22 | 18 | 40 | 10 | 26 | |
| S400M 8X30 1 | M8/27 | 18 | 40 | 10 | 26 | |
| S400M 8X40 1 | M8/37 | 18 | 40 | 10 | 26 | |
| S400M 8X50 1 | M8/47 | 18 | 40 | 10 | 26 | |
| S400M 8X60 1 | M8/57 | 18 | 40 | 10 | 26 | |
| S500M 6X16 1 | M6/12 | 18 | 50 | 15 | 34 | |
| S500M 6X20 1 | M6/16 | 18 | 50 | 15 | 34 | |
| S500M 6X30 1 | M6/26 | 18 | 50 | 15 | 34 | |
| S500M 8X20 1 | M8/17 | 18 | 50 | 15 | 34 | |
| S500M 8X25 1 | M8/22 | 18 | 50 | 15 | 34 | |
| S500M 8X30 1 | M8/27 | 18 | 50 | 15 | 34 | |
| S500M 8X40 1 | M8/37 | 18 | 50 | 15 | 34 | |
| S500M 8X50 1 | M8/47 | 18 | 50 | 15 | 34 | |
| S500M 8X60 1 | M8/57 | 18 | 50 | 15 | 34 | |
| S500M10X100 1 | M10/96 | 23 | 50 | 15 | 34 | |
| S500M10X25 1 | M10/21 | 23 | 50 | 15 | 34 | |
| S500M10X30 1 | M10/26 | 23 | 50 | 15 | 34 | |
| S500M10X40 1 | M10/36 | 23 | 50 | 15 | 34 | |
| S500M10X50 1 | M10/46 | 23 | 50 | 15 | 34 | |
| S500M10X60 1 | M10/56 | 23 | 50 | 15 | 34 | |
| S630M 8X20 1 | M8/16 | 23 | 63 | 15 | 40 | |
| S630M 8X25 1 | M8/21 | 23 | 63 | 15 | 40 | |
| S630M 8X30 1 | M8/26 | 23 | 63 | 15 | 40 | |
| S630M 8X45 1 | M8/41 | 23 | 63 | 15 | 40 | |
| S630M 8X50 1 | M8/46 | 23 | 63 | 15 | 40 | |
| S630M10X100 1 | M10/96 | 25 | 80 | 21 | 52 | |
| S630M10X20 1 | M10/17 | 23 | 63 | 15 | 40 | |
| S630M10X25 1 | M10/22 | 23 | 63 | 15 | 40 | |
| S630M10X30 1 | M10/27 | 23 | 63 | 15 | 40 | |
| S630M10X40 1 | M10/37 | 23 | 63 | 15 | 40 | |
| S630M10X80 1 | M10/77 | 23 | 63 | 15 | 40 | |
| S800M10X25 1 | M10/21 | 25 | 80 | 21 | 52 | |
| S800M10X30 1 | M10/26 | 25 | 80 | 21 | 52 | |
| S800M10X40 1 | M10/36 | 25 | 80 | 21 | 52 | |
| S800M12X25 1 | M12/22 | 25 | 80 | 21 | 52 | |
| S800M12X30 1 | M12/27 | 25 | 80 | 21 | 52 | |
| S800M12X40 1 | M12/37 | 25 | 80 | 21 | 52 | |
| S800M12X50 1 | M12/47 | 25 | 80 | 21 | 52 | |
| S800M12X60 1 | M12/57 | 25 | 80 | 21 | 52 |
