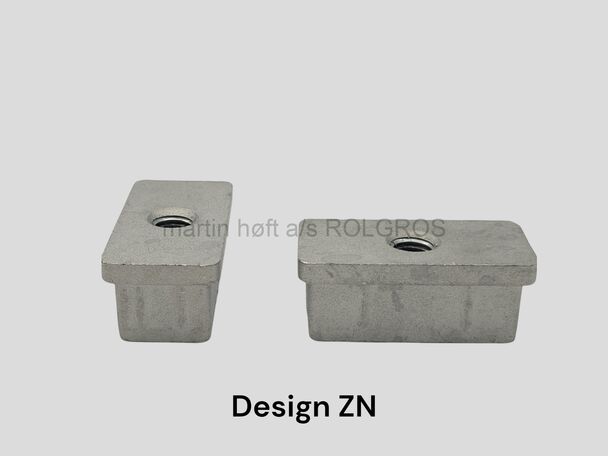

Part no., ZN
Threaded inserts
- % of recycled material used app 60%
- % of recyclability of the materials 100%
Material: Z 410
| SKU | Tube size (outside) | Total height, (C) | Top-height ( B ) | Max. axial static base load, kg | Threadsize / Stud length | Gauge range | |
|---|---|---|---|---|---|---|---|
| ZN 4025F/HM10 | 40X25 | 20 | 5 | 600 | M10 | ||
| ZN 5030X2M10 | 50X30 | 20 | 5 | 600 | M10 | 2,0 | |
| ZN 6030X2M10 | 60X30 | 20 | 5 | 600 | M10 | 2,0 | |
| ZN 5025X2M10 | 50X25 | 20 | 5 | 600 | M10 | 2,0 | |
| ZN 6030X2,5M10 | 60X30 | 22 | 5 | 600 | M10 | 2,5 | |
| ZN 7030M10 | 70X30 | 20 | 5 | 600 | M10 | 2,4 | |
| ZN 8030X2,5M10 | 80X30 | 20 | 5 | 600 | M10 | 2,5 |
