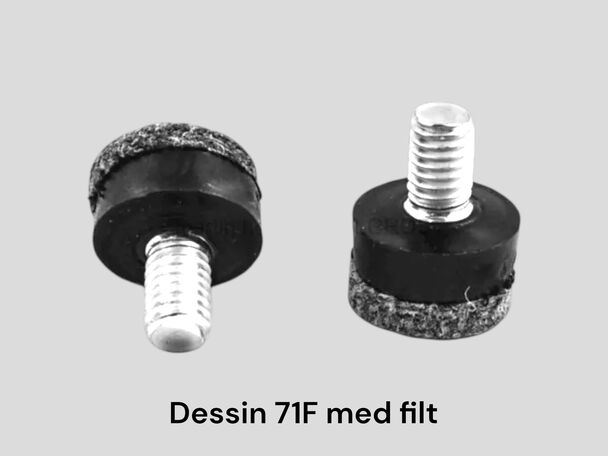

Dessin 71F med filt
| SKU | Gevind/Effektiv gevindlgd.(M/L) | Base diameter, (A) | Base højde, (B) | Filttykkelse | |
|---|---|---|---|---|---|
| 716F-D20M 8X20 1/1 | M8X20 | 20 | 9 | 4 | |
| 71F-D12M 5X10 1 | M5X10 | 12 | 9 | 4 | |
| 71F-D12M 5X12 1 | M5X12 | 12 | 9 | 4 | |
| 71F-D12M 5X20 1 | M5X20 | 12 | 9 | 4 | |
| 71F-D12M 5X25 1 | M5X25 | 12 | 9 | 4 | |
| 71F-D15M 5X20 1 | M5X20 | 15 | 9 | 4 | |
| 71F-D15M 6X10 1 | M6X10 | 15 | 9 | 4 | |
| 71F-D15M 6x12 1 | M6X12 | 15 | 9 | 4 | |
| 71F-D15M 6x16 1 | M6X16 | 15 | 9 | 4 | |
| 71F-D15M 6x20 1 | M6X20 | 15 | 9 | 4 | |
| 71F-D15M 6x50 1 | M6X50 | 15 | 9 | 4 | |
| 71F-D20M 6X16 1 | M6X16 | 20 | 9 | 4 | |
| 71F-D20M 6X20 1 | M6X20 | 20 | 9 | 4 | |
| 71F-D20M 6X30 1 | M6X30 | 20 | 9 | 4 | |
| 71F-D20M 8X16 1 | M8X16 | 20 | 9 | 4 | |
| 71F-D25M 8X16 1 | M8X16 | 25 | 9 | 4 | |
| 71F-D25M 8X40 1 | M8X40 | 25 | 9 | 4 | |
| 71F-D15M 5X16 1 | M5X16 | 15 | 9 | 4 | |
| 71F-D15M 5X25 1 | M5X25 | 15 | 9 | 4 | |
| 71F-D15M 5X30 1 | M5X30 | 15 | 9 | 4 | |
| 71F-D15M 5X40 1 | M5X40 | 15 | 9 | 4 | |
| 71F-D15M 5X50 1 | M5X50 | 15 | 9 | 4 | |
| 71F-D15M 6X25 1 | M6X25 | 15 | 9 | 4 | |
| 71F-D15M 6X30 1 | M6X30 | 15 | 9 | 4 | |
| 71F-D15M 6X40 1 | M6X40 | 15 | 9 | 4 | |
| 71F-D20M 5x12 1 | M5X12 | 20 | 9 | 4 | |
| 71F-D20M 5x16 1 | M5X16 | 20 | 9 | 4 | |
| 71F-D20M 5X20 1 | M5X20 | 20 | 9 | 4 | |
| 71F-D20M 5X25 1 | M5X25 | 20 | 9 | 4 | |
| 71F-D20M 5X30 1 | M5X30 | 20 | 9 | 4 | |
| 71F-D20M 5X40 1 | M5X40 | 20 | 9 | 4 | |
| 71F-D20M 5X50 1 | M5X50 | 20 | 9 | 4 | |
| 71F-D20M 6X12 1 | M6X12 | 20 | 9 | 4 | |
| 71F-D20M 6X14 1 | M6X14 | 20 | 9 | 4 | |
| 71F-D20M 6X25 1 | M6X25 | 20 | 9 | 4 | |
| 71F-D20M 6X40 1 | M6X40 | 20 | 9 | 4 | |
| 71F-D20M 6X50 1 | M6X50 | 20 | 9 | 4 | |
| 71F-D20M 8X20 1 | M8X20 | 20 | 9 | 4 | |
| 71F-D20M 8X25 1 | M8X25 | 20 | 9 | 4 | |
| 71F-D20M 8X30 1 | M8X30 | 20 | 9 | 4 | |
| 71F-D20M 8X50 1 | M8X50 | 20 | 9 | 4 | |
| 71F-D20M 8X60 1 | M8X60 | 20 | 9 | 4 | |
| 71F-D25M 5X16 1 | M5X16 | 25 | 9 | 4 | |
| 71F-D25M 5X20 1 | M5X20 | 25 | 9 | 4 | |
| 71F-D25M 5X25 1 | M5X25 | 25 | 9 | 4 | |
| 71F-D25M 5X30 1 | M5X30 | 25 | 9 | 4 | |
| 71F-D25M 5X40 1 | M5X40 | 25 | 9 | 4 | |
| 71F-D25M 5X50 1 | M5X50 | 25 | 9 | 4 | |
| 71F-D25M 6X12 1 | M6X12 | 25 | 9 | 4 | |
| 71F-D25M 6X14 1 | M6X14 | 25 | 9 | 4 | |
| 71F-D25M 6X16 1 | M6X16 | 25 | 9 | 4 | |
| 71F-D25M 6X20 1 | M6X20 | 25 | 9 | 4 | |
| 71F-D25M 6X25 1 | M6X25 | 25 | 9 | 4 | |
| 71F-D25M 6X30 1 | M6X30 | 25 | 9 | 4 | |
| 71F-D25M 6X40 1 | M6X40 | 25 | 9 | 4 | |
| 71F-D25M 6X50 1 | M6X50 | 25 | 9 | 4 | |
| 71F-D25M 6X50 1-1 | M6X50 | 25 | 9 | 4 | |
| 71F-D25M 8X20 1 | M8X20 | 25 | 9 | 4 | |
| 71F-D25M 8X25 1 | M8X25 | 25 | 9 | 4 | |
| 71F-D25M 8X30 1 | M8X30 | 25 | 9 | 4 | |
| 71F-D25M 8X50 1 | M8X50 | 25 | 9 | 4 |
