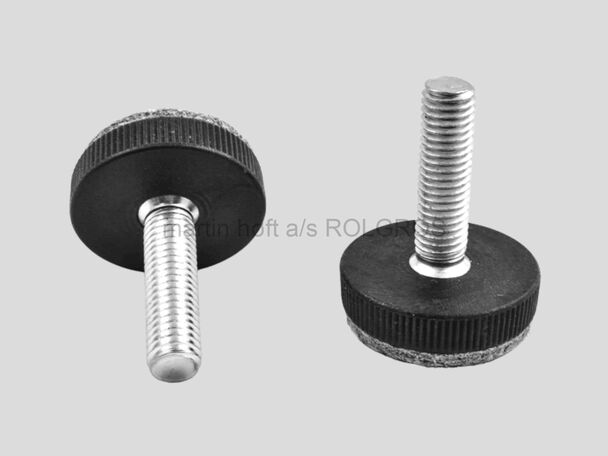

Dessin 70F og 706F
Material: PA
70-D29, 70-D32 and 70-D38 can be produced with Stud length from 16 to 100mm, subject to minimum quantity
Download tekniskdatablade (PDF)
| SKU | Gevind/Effektiv gevindlgd.(M/L) | Base diameter, (A) | Base højde, (B) | Filttykkelse | Nøglevidde, skrue top (sw) | |
|---|---|---|---|---|---|---|
| 70F-D25M 5x20 1 | M5X20 | 25 | 9 | 4 | ||
| 70F-D25M 5x40 1 | M5X40 | 25 | 9 | 4 | ||
| 70F-D25M 6X12 1 | M6X12 | 25 | 9 | 4 | ||
| 70F-D25M 6X16 1 | M6X16 | 25 | 9 | 4 | ||
| 70F-D25M 6X20 1 | M6X20 | 25 | 9 | 4 | ||
| 70F-D25M 6X25 1 | M6X25 | 25 | 9 | 4 | ||
| 70F-D25M 8X20 1 | M8X20 | 25 | 9 | 4 | ||
| 70F-D25M 8X25 1 | M8X25 | 25 | 9 | 4 | ||
| 70F-D25M 8X30 1 | M8X30 | 25 | 9 | 4 | ||
| 70F-D25M10X25 1 | M10X25 | 25 | 9 | 4 | ||
| 70F-D25M10X40 1 | M10X40 | 25 | 9 | 4 | ||
| 70F-D25M 8X40 1 | M8X40 | 25 | 9 | 4 | ||
| 70F-D29M 8X20 1 | M8X20 | 29 | 10 | 4 | ||
| 70F-D29M 6x20 1 | M6X20 | 29 | 10 | 4 | ||
| 70F-D32M 6X20 1 | M6X20 | 32 | 11 | 4 | ||
| 70F-D29M 8X30 1 | M8X30 | 29 | 10 | 4 | ||
| 70F-D32M 8X20 1 | M8X20 | 32 | 11 | 4 | ||
| 70F-D32M 8x25 1 | M8X25 | 32 | 11 | 4 | ||
| 70F-D32M 8x30 1 | M8X30 | 32 | 11 | 4 | ||
| 70F-D32M10X30 1 | M10X30 | 32 | 11 | 4 | ||
| 70F-D32M10x20 1 | M10X20 | 32 | 11 | 4 | ||
| 70F-d38M 6x20 1 | M6X20 | 38 | 12 | 4 | ||
| 70F-D32M10X40 1 | M10X40 | 32 | 11 | 4 | ||
| 70F-D32M10X60 1 | M10X60 | 32 | 11 | 4 | ||
| 70F-D38M 8X20 1 | M8X20 | 38 | 12 | 4 | ||
| 70F-D38M 8x25 1 | M8X25 | 38 | 12 | 4 | ||
| 70F-D38M 8X40 1 | M8X40 | 38 | 12 | 4 | ||
| 70F-D38M 8X301 | M8X30 | 38 | 12 | 4 | ||
| 70F-D38M10X25 1 | M10X25 | 38 | 12 | 4 | ||
| 70F-D44NM 6x20 1 | M6X20 | 44 | 13 | 4 | ||
| 70F-D38M10X30 1 | M10X30 | 38 | 12 | 4 | ||
| 70F-D38M10x50 1 | M10X50 | 38 | 12 | 4 | ||
| 70F-D44NM 8x20 1 | M8X20 | 44 | 13 | 4 | ||
| 70F-D44NM 8x25 1 | M8X25 | 44 | 13 | 4 | ||
| 70F-D44NM10X30 1 | M10X30 | 44 | 13 | 4 | ||
| 70F-D44NM 8x50 1 | M8X50 | 44 | 13 | 4 | ||
| 70F-D44NM10X40 1 | M10X40 | 44 | 13 | 4 | ||
| 70F-D44NM10X60 1 | M10X60 | 44 | 13 | 4 | ||
| 706F-D32M 8X20 1/1 | 8/16 | 32 | 8 | 4 | ||
| 706F-D32M 8X30 1 | 8/26 | 32 | 8 | 4 | ||
| 706F-D44NM10X50 1 | 10/44 | 44 | 10 | 4 | ||
| 70F-D25M 6X50 1 | M6X47 | 25 | 6 | 4 | ||
| 70F-D32M10X25 1 | M10X19 | 32 | 13 | 4 | ||
| 70F-D38M10X40 1 | M10X34 | 38 | 14 | 4 | ||
| 706F-D32M10X40 1 | M10X34 | 32 | 13 | 4 | 4 | |
| 706F-D38M10X40 1 | M10X34 | 38 | 14 | 4 | 4 | |
| 706F-D29M10X30 1 | M10X24 | 29 | 12 | 4 | 4 | |
| 706F-D25M10x25 1 | 10/19 | 25 | 6 | 4 | 4 | |
| 706F-D29M10X40 1 | 10/34 | 29 | 7 | 4 | 4 |
