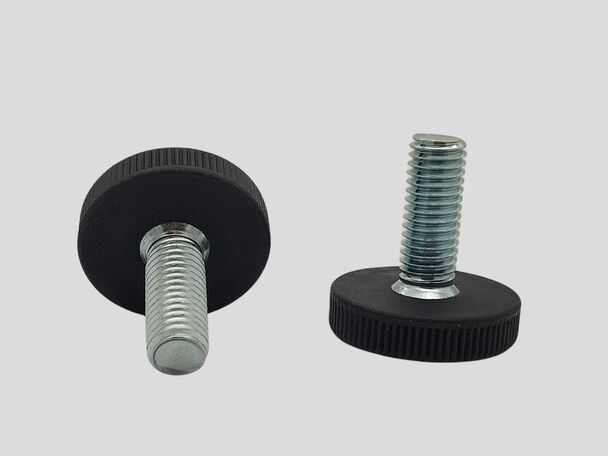

Stilleskrue/greb, dessin 70
Stilleskruer/greb med FAST base og indstøbt el. zink skrue.
Gnistret overflade
Materiale: PA
70-D29, 70-D32 og 70-D38 kan produceres med skruelængder fra 16 til 100mm
| SKU | Gevind/Effektiv gevindlgd.(M/L) | Base diameter, (A) | Base højde, (B) | |
|---|---|---|---|---|
| 70-D38M 6X30 1 | M6X27 | 38 | 9 | |
| 70-D38M 6X40 1 | M6X37 | 38 | 9 | |
| 70-D38M 6X50 1 | M6X47 | 38 | 9 | |
| 70-D38M 8X100 1 | M8X96 | 38 | 9 | |
| 70-D38M 8X20 1 | M8X16 | 38 | 9 | |
| 70-D38M 8X25 1 | M8X21 | 38 | 9 | |
| 70-D38M 8X30 1 | M8X26 | 38 | 9 | |
| 70-D38M 8X40 1 | M8X36 | 38 | 9 | |
| 70-D38M 8X50 1 | M8X46 | 38 | 9 | |
| 70-D38M 8X60 1 | M8X56 | 38 | 9 | |
| 70-D38M 8X75 1 | M8X71 | 38 | 9 | |
| 70-D38M10X16 1 | M10X10 | 38 | 9 | |
| 70-D38M10X20 1 | M10X14 | 38 | 9 | |
| 70-D38M10X25 1 | M10X19 | 38 | 9 | |
| 70-D38M10X30 1 | M10X24 | 38 | 9 | |
| 70-D38M10X35 1 | M10X29 | 38 | 9 | |
| 70-D38M10X40 1 | M10X34 | 38 | 9 | |
| 70-D38M10X50 1 | M10X44 | 38 | 9 | |
| 70-D38M10X60 1 | M10X54 | 38 | 9 | |
| 70-D38M12X40 1 | M12X37 | 38 | 9 | |
| 70-D38M12X50 1 | M12X47 | 38 | 9 | |
| 70-D38M12X60 1 | M12X57 | 38 | 9 | |
| 70-D44M 6X20 1 | M6X17 | 44 | 10 | |
| 70-D44M 6X25 1 | M6X22 | 44 | 10 | |
| 70-D44NM 6X30 1 | M6X27 | 44 | 10 | |
| 70-D44M 6X40 1 | M6X37 | 44 | 10 | |
| 70-D44M 6X50 1 | M6X47 | 44 | 10 | |
| 70-D44NM 8X12 1 | M8X9 | 44 | 10 | |
| 70-D44NM 8X16 1 | M8X12 | 44 | 10 | |
| 70-D44NM 8X20 1 | M8X16 | 44 | 10 | |
| 70-D44NM 8X25 1 | M8X21 | 44 | 10 | |
| 70-D44NM 8X30 1 | M8X26 | 44 | 10 | |
| 70-D44M 8X35 1 | M8X31 | 44 | 10 | |
| 70-D44NM 8X40 1 | M8X36 | 44 | 10 | |
| 70-D44M 8X45 1 | M8X41 | 44 | 10 | |
| 70-D44NM 8X50 1 | M8X46 | 44 | 10 | |
| 70-D44NM 8X75 1 | M8X71 | 44 | 10 | |
| 70-D44M10X16 1 | M10X10 | 44 | 10 | |
| 70-D44M10X20 1 | M10X14 | 44 | 10 | |
| 70-D44NM10X25 1 | M10X19 | 44 | 10 | |
| 70-D44NM10X30 1 | M10X24 | 44 | 10 | |
| 70-D44NM10X40 1 | M10X34 | 44 | 10 | |
| 70-D44NM10X50 1 | M10X44 | 44 | 10 | |
| 70-D44NM10X60 1 | M10X54 | 44 | 10 | |
| 70-D60M 8X20 1 | M8X16 | 60 | 10 | |
| 70-D60M10X16 1 | M10X10 | 60 | 10 | |
| 70-D60M10X20 1 | M10X14 | 60 | 10 | |
| 70-D60M10X25 1 | M10X19 | 60 | 10 | |
| 70-D60M10X30 1 | M10X24 | 60 | 10 | |
| 70-D60M10X35 1 | M10X29 | 60 | 10 | |
| 70-D60M10X40 1 | M10X34 | 60 | 10 | |
| 70-D60M10X50 1 | M10X44 | 60 | 10 | |
| 70-D60M10X60 1 | M10X54 | 60 | 10 | |
| 70-D60M10X70 1 | M10X64 | 60 | 10 | |
| 70-D60M10X80 1 | M10X74 | 60 | 10 | |
| 70-D25M 5X20 1 | M5X17 | 25 | 6 | |
| 70-D25M 5X25 1 | M5X22 | 25 | 6 | |
| 70-D25M 5X30 1 | M5X27 | 25 | 6 | |
| 70-D25M 5X40 1 | M5X37 | 25 | 6 | |
| 70-D25M 5X50 1 | M5X47 | 25 | 6 | |
| 70-D25M 6X16 1 | M6X13 | 25 | 6 | |
| 70-D25M 6X20 1 | M6X17 | 25 | 6 | |
| 70-D25M 6X25 1 | M6X22 | 25 | 6 | |
| 70-D25M 6X30 1 | M6X27 | 25 | 6 | |
| 70-D25M 6X40 1 | M6X37 | 25 | 6 | |
| 70-D25M 6X50 1 | M6X47 | 25 | 6 | |
| 70-D25M 8X16 1 | M8X13 | 25 | 6 | |
| 70-D25M 8X20 1 | M8X16 | 25 | 6 | |
| 70-D25M 8X25 1 | M8X21 | 25 | 6 | |
| 70-D25M 8X30 1 | M8X26 | 25 | 6 | |
| 70-D25M 8X40 1 | M8X36 | 25 | 6 | |
| 70-D25M 8X50 1 | M8X46 | 25 | 6 | |
| 70-D25M 8X75 1 | M8X71 | 25 | 6 | |
| 70-D25M10X25 1 | M10X19 | 25 | 6 | |
| 70-D25M10X30 1 | M10X24 | 25 | 6 | |
| 70-D25M10X40 1 | M10X34 | 25 | 6 | |
| 70-D25M10X50 1 | M10X44 | 25 | 6 | |
| 70-D25M10X60 1 | M10X54 | 25 | 6 | |
| 70-D29M 5X20 1 | M5X17 | 29 | 7 | |
| 70-D29M 5X30 1 | M5X27 | 29 | 7 | |
| 70-D29M 5X40 1 | M5X37 | 29 | 7 | |
| 70-D29M 6X12 1 | M6X9 | 29 | 7 | |
| 70-D29M 6X20 1 | M6X17 | 29 | 7 | |
| 70-D29M 6X25 1 | M6X22 | 29 | 7 | |
| 70-D29M 6X30 1 | M6X27 | 29 | 7 | |
| 70-D29M 6X40 1 | M6X37 | 29 | 7 | |
| 70-D29M 6X50 1 | M6X47 | 29 | 7 | |
| 70-D29M 8X20 1 | M8X16 | 29 | 7 | |
| 70-D29M 8X25 1 | M8X21 | 29 | 7 | |
| 70-D29M 8X30 1 | M8X26 | 29 | 7 | |
| 70-D29M 8X40 1 | M8X36 | 29 | 7 | |
| 70-D29M 8X50 1 | M8X46 | 29 | 7 | |
| 70-D29M 8X75 1 | M8X71 | 29 | 7 | |
| 70-D29M10X20 1 | M10X16 | 29 | 7 | |
| 70-D29M10X25 1 | M10X19 | 29 | 7 | |
| 70-D29M10X30 1 | M10X24 | 29 | 7 | |
| 70-D29M10X40 1 | M10X34 | 29 | 7 | |
| 70-D29M10X50 1 | M10X44 | 29 | 7 | |
| 70-D29M10X60 1 | M10X54 | 29 | 7 | |
| 70-D32M 5X20 1 | M5X17 | 32 | 8 |
