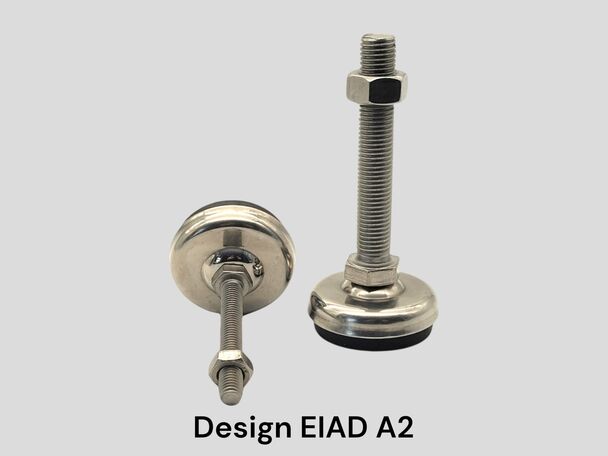

Dessin EIAD

Med RUSTFRI skrue og RUSTFRI metalkappe sammen med gummibase
Baser: 40, 60, 80, 100 og 120 mm
Gevind: M10, M12, M16 og M20
Længe: fra 70 til 150 mm

75-80 Shore A

SKU	Gevind/Effektiv gevindlgd.(M/L)	Base diameter, (A)	Højde	Nøglevidde 6 kt. (SW)	Max Belastning, KG
EIAD80M12X100 A2 1	M12X100	80	146	17	400	Order
EIAD60M12X100 A2 1	M12X100	60	133	17	300	Order
EIAD60M12X70 A2 1	M12X60	60	103	17	300	Order
EIAD100M12X100 A2 1	M12X100	100	146	17	350	Order
EIAD60M10X100 A2 1	M10X100	60	133	13	250	Order
EIAD60M10X150 A2 1	M10X150	60	183	13	250	Order
EIAD60M10X70 A2 1	M10X70	60	103	13	250	Order
EIAD60M16X100 A2 1	M16X100	60	133	19	400	Order
EIAD100M12X150 A2 1	M12X150	100	196	17	350	Order
EIAD100M12X70 A2 1	M12X70	100	116	17	350	Order
EIAD100M16X100 A2 1	M16X100	100	146	19	600	Order
EIAD100M16X150 A2 1	M16X150	100	196	19	600	Order
EIAD100M20X100 A2 1	M20X100	100	146	22	800	Order
EIAD100M20X150 A2 1	M20X150	100	196	22	800	Order
EIAD120M12X100 A2 1	M12X100	120	146	17	600	Order
EIAD120M12X150 A2 1	M12X150	120	196	17	600	Order
EIAD120M12X70 A2 1	M12X70	120	116	17	600	Order
EIAD120M16X100 A2 1	M16X100	120	146	19	800	Order
EIAD120M16X150 A2 1	M16X150	120	196	19	800	Order
EIAD120M20X100 A2 1	M20X100	120	146	22	1000	Order
EIAD120M20X150 A2 1	M20X150	120	196	22	1000	Order
EIAD40M10X100 A2 1	M10X100	40	121	13	200	Order
EIAD60M12X150 A2 1-1	M12X150	60	183	17	300	Order
EIAD80M12X150 A2 1	M12X150	80	196	17	400	Order
EIAD80M12X70 A2 1	M12X70	80	116	17	400	Order
EIAD80M16X100 A2 1	M16X100	80	146	19	500	Order
EIAD80M16X150 A2 1	M16X150	80	196	19	500	Order
EIAD80M20X100 A2 1	M20X100	80	146	22	600	Order
EIAD80M20X150 A2 1	M20X150	80	196	22	600	Order
