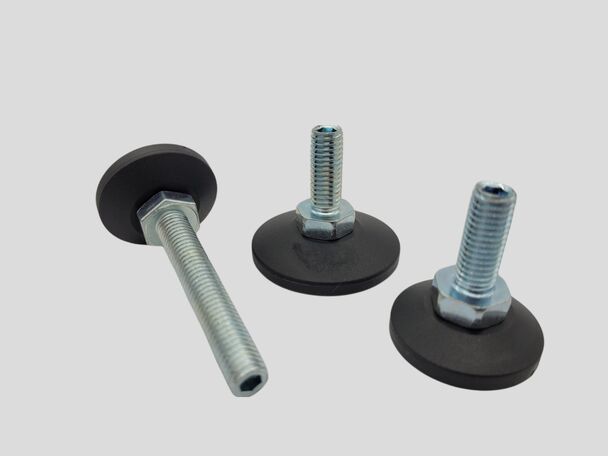

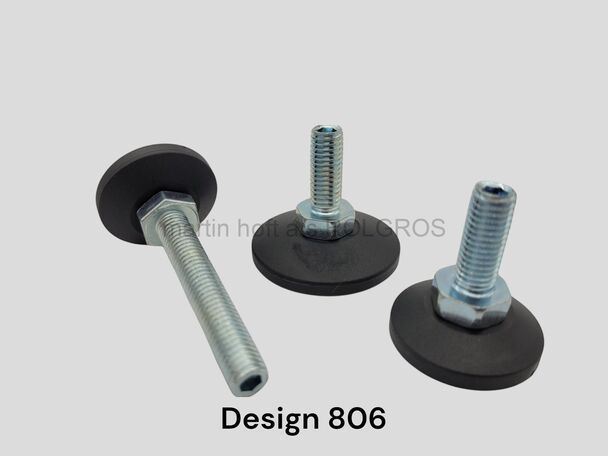

Dessin 806, med 6 kt. i gevindende
Indvendig 6 kt. i skrue top
Materiale: PA-Polyamid, Recycle Post Industrial
Vores skruer er ikke produceret af råmateriale fra Rusland
| SKU | Axial statisk belastning, kg | Gevind/Effektiv gevindlgd.(M/L) | Base diameter, (A) | Base højde, (B) | Nøglevidde, skrue top (sw) | |
|---|---|---|---|---|---|---|
| 806-D20M 8X30 1 | 400 | M8X30 | 20 | 11 | 13 | |
| 806-D20M 8X40 1 | 400 | M8X40 | 20 | 11 | 13 | |
| 806-D20M 8X50 1 | 400 | M8X50 | 20 | 11 | 133 | |
| 806-D20M 8X60 1 | 400 | M8X60 | 20 | 11 | 13 | |
| 806-D20M 8X75 1 | 400 | M8X75 | 20 | 11 | 13 | |
| 806-D20M10X25 1 | 550 | M10X25 | 20 | 11 | 17 | |
| 806-D20M10X30 1 | 550 | M10X30 | 20 | 11 | 17 | |
| 806-D20M10X40 1 | 550 | M10X40 | 20 | 11 | 17 | |
| 806-D20M10X50 1 | 550 | M10X50 | 20 | 11 | 17 | |
| 806-D20M10X60 1 | 550 | M10X60 | 20 | 11 | 17 | |
| 806-D30M 8X100 1 | 400 | M8X100 | 30 | 10 | 13 | |
| 806-D30M 8X30 1 | 400 | M8X30 | 30 | 10 | 13 | |
| 806-D30M 8X40 1 | 400 | M8X40 | 30 | 10 | 13 | |
| 806-D30M 8X50 1 | 400 | M8X50 | 30 | 10 | 13 | |
| 806-D30M 8X60 1 | 400 | M8X60 | 30 | 10 | 13 | |
| 806-D30M 8X75 1 | 400 | M8X75 | 30 | 10 | 13 | |
| 806-D30M10X25 1 | 450 | M10X25 | 30 | 10 | 17 | |
| 806-D30M10X30 1 | 450 | M10X30 | 30 | 10 | 17 | |
| 806-D30M10X40 1 | 450 | M10X40 | 30 | 10 | 17 | |
| 806-D30M10X50 1 | 450 | M10X50 | 30 | 10 | 17 | |
| 806-D30M10X60 1 | 450 | M10X60 | 30 | 10 | 17 | |
| 806-D38M 8X100 1 | 400 | M8x100 | 38 | 10 | 13 | |
| 806-D38M 8X30 1 | 400 | M8X30 | 38 | 10 | 13 | |
| 806-D38M 8X40 1 | 400 | M8X40 | 38 | 10 | 13 | |
| 806-D38M 8X50 1 | 400 | M8x50 | 38 | 10 | 13 | |
| 806-D38M 8X60 1 | 400 | M8x60 | 38 | 10 | 13 | |
| 806-D38M 8X75 1 | 400 | M8X75 | 38 | 10 | 13 | |
| 806-D38M10X25 1 | 550 | M10X25 | 38 | 10 | 17 | |
| 806-D38M10X30 1 | 550 | M10X30 | 38 | 10 | 17 | |
| 806-D38M10X40 1 | 550 | M10X40 | 38 | 10 | 17 | |
| 806-D38M10X50 1 | 550 | M10X50 | 38 | 10 | 17 | |
| 806-D38M10X60 1 | 550 | M10X60 | 38 | 10 | 17 | |
| 806-D38M12X100 1 | 550 | M12X100 | 38 | 10 | 19 | |
| 806-D38M12X60 1 | 550 | M12X60 | 38 | 10 | 19 | |
| 806-D48M10X25 1 | 550 | M10X25 | 48 | 10 | 17 | |
| 806-D48M10X30 1 | 550 | M10X30 | 48 | 10 | 17 | |
| 806-D48M10X40 1 | 550 | M10X40 | 48 | 10 | 17 | |
| 806-D48M10X50 1 | 550 | M10X50 | 48 | 10 | 17 | |
| 806-D48M10X60 1 | 550 | M10X60 | 48 | 10 | 17 | |
| 806-D48M10X80 1 | 550 | M10X80 | 48 | 10 | 17 | |
| 806-D48M12X100 1 | 550 | M12X100 | 48 | 10 | 19 | |
| 806-D48M12X120 1 | 550 | M12X120 | 48 | 10 | 19 | |
| 806-D48M12X60 1 | 550 | M12X60 | 48 | 10 | 19 |
