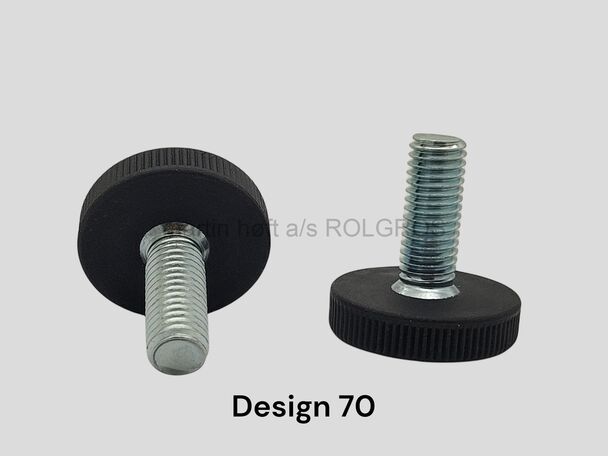

Dessin 70
Materiale: Regenerat PA Post Industrial
Rustfri skruer kan indstøbes
Stilleskruer med M6 og M8 mm gevind, har en belastning på 400 kg
Stilleskruer med M10 mm gevind, har en belastning på 500 kg
70-D29, 70-D32 og 70-D38 kan produceres med skruelængder fra 16 til 100mm
Vores skruer er ikke produceret af råmateriale fra Rusland
| SKU | Gevind/Effektiv gevindlgd.(M/L) | Base diameter, (A) | Base højde, (B) | |
|---|---|---|---|---|
| 70-D29M 8X16 1 | M8X12 | 29 | 7 | |
| 70-D35HM10X50 1 | M10X44 | 35 | 9 | |
| 70-D35M10X50 1 | M10X44 | 35 | 7,5 | |
| 70-D32M10X30 1 | M10X24 | 32 | 8 | |
| 70-D32M10X40 1 | M10X34 | 32 | 8 | |
| 70-D32M10X50 1 | M10X44 | 32 | 8 | |
| 70-D32M10X60 1 | M10X54 | 32 | 8 | |
| 70-D38M 5X25 1 | M5X22 | 38 | 9 | |
| 70-D38M 6X20 1 | M6X17 | 38 | 9 | |
| 70-D38M 6X25 1 | M6x22 | 38 | 9 | |
| 70-D38M 6X30 1 | M6X27 | 38 | 9 | |
| 70-D38M 6X40 1 | M6X37 | 38 | 9 | |
| 70-D38M 6X50 1 | M6X47 | 38 | 9 | |
| 70-D38M 8X100 1 | M8X96 | 38 | 9 | |
| 70-D38M 8x12 1 | M8X9 | 38 | 9 | |
| 70-D38M 8X16 1 | M8X13 | 38 | 9 | |
| 70-D38M 8X20 1 | M8X16 | 38 | 9 | |
| 70-D38M 8X25 1 | M8X21 | 38 | 9 | |
| 70-D38M 8X30 1 | M8X26 | 38 | 9 | |
| 70-D38M 8X40 1 | M8X36 | 38 | 9 | |
| 70-D38M 8X50 1 | M8X46 | 38 | 9 | |
| 70-D38M 8X60 1 | M8X56 | 38 | 9 | |
| 70-D38M 8X75 1 | M8X71 | 38 | 9 | |
| 70-D38M10X16 1 | M10X10 | 38 | 9 | |
| 70-D38M10X20 1 | M10X14 | 38 | 9 | |
| 70-D38M10X25 1 | M10X19 | 38 | 9 | |
| 70-D38M10X30 1 | M10X24 | 38 | 9 | |
| 70-D38M10X35 1 | M10X29 | 38 | 9 | |
| 70-D38M10X40 1 | M10X34 | 38 | 9 | |
| 70-D38M10X50 1 | M10X44 | 38 | 9 | |
| 70-D38M10X60 1 | M10X54 | 38 | 9 | |
| 70-D38M12X40 1 | M12X37 | 38 | 9 | |
| 70-D38M12X50 1 | M12X47 | 38 | 9 | |
| 70-D38M12X60 1 | M12X57 | 38 | 9 | |
| 70-D44M 6X20 1 | M6X17 | 44 | 10 | |
| 70-D44M 6X25 1 | M6X22 | 44 | 10 | |
| 70-D44NM 6X30 1 | M6X27 | 44 | 10 | |
| 70-D44M 6X40 1 | M6X37 | 44 | 10 | |
| 70-D44M 6X50 1 | M6X47 | 44 | 10 | |
| 70-D44NM 8X12 1 | M8X9 | 44 | 10 | |
| 70-D44NM 8X16 1 | M8X12 | 44 | 10 | |
| 70-D44NM 8X20 1 | M8X16 | 44 | 10 | |
| 70-D44NM 8X25 1 | M8X21 | 44 | 10 | |
| 70-D44NM 8X30 1 | M8X26 | 44 | 10 | |
| 70-D44M 8X35 1 | M8X31 | 44 | 10 | |
| 70-D44NM 8X40 1 | M8X36 | 44 | 10 | |
| 70-D44M 8X45 1 | M8X41 | 44 | 10 | |
| 70-D44NM 8X50 1 | M8X46 | 44 | 10 | |
| 70-D44NM 8X75 1 | M8X71 | 44 | 10 | |
| 70-D44M10X16 1 | M10X10 | 44 | 10 | |
| 70-D44M10X20 1 | M10X14 | 44 | 10 | |
| 70-D44NM10X25 1 | M10X19 | 44 | 10 | |
| 70-D44NM10X30 1 | M10X24 | 44 | 10 | |
| 70-D44NM10X40 1 | M10X34 | 44 | 10 | |
| 70-D44NM10X50 1 | M10X44 | 44 | 10 | |
| 70-D44NM10X60 1 | M10X54 | 44 | 10 | |
| 70-D60M 8X20 1 | M8X16 | 60 | 10 | |
| 70-D60M10X16 1 | M10X10 | 60 | 10 | |
| 70-D60M10X20 1 | M10X14 | 60 | 10 | |
| 70-D60M10X25 1 | M10X19 | 60 | 10 | |
| 70-D60M10X30 1 | M10X24 | 60 | 10 | |
| 70-D60M10X35 1 | M10X29 | 60 | 10 | |
| 70-D60M10X40 1 | M10X34 | 60 | 10 | |
| 70-D60M10X50 1 | M10X44 | 60 | 10 | |
| 70-D60M10X60 1 | M10X54 | 60 | 10 | |
| 70-D60M10X70 1 | M10X64 | 60 | 10 | |
| 70-D60M10X80 1 | M10X74 | 60 | 10 | |
| 70-D80M10X16 1 | M10X13 | 80 | 10 | |
| 70-D25M 5X20 1 | M5X17 | 25 | 6 | |
| 70-D25M 5X25 1 | M5X22 | 25 | 6 | |
| 70-D25M 5X30 1 | M5X27 | 25 | 6 | |
| 70-D25M 5X40 1 | M5X37 | 25 | 6 | |
| 70-D25M 5X50 1 | M5X47 | 25 | 6 | |
| 70-D25M 6X12 1 | M6X9 | 25 | 6 | |
| 70-D25M 6X16 1 | M6X13 | 25 | 6 | |
| 70-D25M 6X20 1 | M6X17 | 25 | 6 | |
| 70-D25M 6X25 1 | M6X22 | 25 | 6 | |
| 70-D25M 6X30 1 | M6X27 | 25 | 6 | |
| 70-D25M 6X40 1 | M6X37 | 25 | 6 | |
| 70-D25M 6X50 1 | M6X47 | 25 | 6 | |
| 70-D25M 8X16 1 | M8X13 | 25 | 6 | |
| 70-D25M 8X20 1 | M8X16 | 25 | 6 | |
| 70-D25M 8X25 1 | M8X21 | 25 | 6 | |
| 70-D25M 8X30 1 | M8X26 | 25 | 6 | |
| 70-D25M 8X40 1 | M8X36 | 25 | 6 | |
| 70-D25M 8X50 1 | M8X46 | 25 | 6 | |
| 70-D25M 8X75 1 | M8X71 | 25 | 6 | |
| 70-D25M10X25 1 | M10X19 | 25 | 6 | |
| 70-D25M10X30 1 | M10X24 | 25 | 6 | |
| 70-D25M10X40 1 | M10X34 | 25 | 6 | |
| 70-D25M10X50 1 | M10X44 | 25 | 6 | |
| 70-D25M10X60 1 | M10X54 | 25 | 6 | |
| 70-D29M 5X20 1 | M5X17 | 29 | 7 | |
| 70-D29M 5X30 1 | M5X27 | 29 | 7 | |
| 70-D29M 5X40 1 | M5X37 | 29 | 7 | |
| 70-D29M 6X12 1 | M6X9 | 29 | 7 | |
| 70-D29M 6X20 1 | M6X17 | 29 | 7 | |
| 70-D29M 6X25 1 | M6X22 | 29 | 7 | |
| 70-D29M 6X30 1 | M6X27 | 29 | 7 | |
| 70-D29M 6X40 1 | M6X37 | 29 | 7 |
