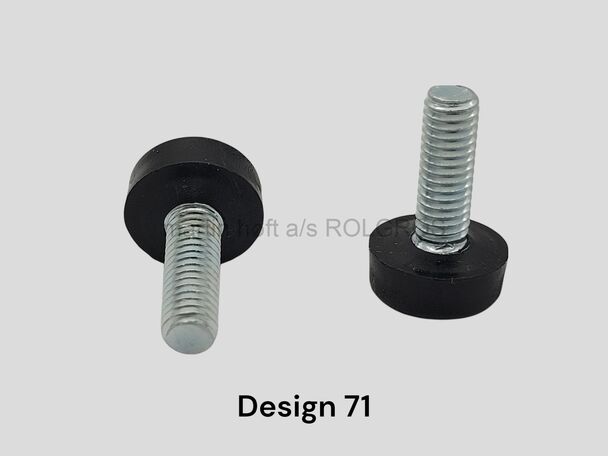

Dessin 71
Materiale, HDPE.
Base diameter D20-25mm M4 og M5
71-D15 kan produceres med m8 skrue i enkelte længder
| SKU | Gevind/Effektiv gevindlgd.(M/L) | Base diameter, (A) | Base højde, (B) | |
|---|---|---|---|---|
| 71-D12M 5X25 1 | M5X22 | 12 | 5 | |
| 71-D15M 4X10 1 | M4X8 | 15 | 5 | |
| 71-D15M 4X12 1 | M4X10 | 15 | 5 | |
| 71-D15M 4X14 1 | M4X12 | 15 | 5 | |
| 71-D15M 4X25 1 | M4X23 | 15 | 5 | |
| 71-D15M 4X30 1 | M4X30 | 15 | 5 | |
| 71-D15M 5X16 1 | M5X13 | 15 | 6 | |
| 71-D15M 5X20 1 | M5X17 | 15 | 6 | |
| 71-D15M 5X25 1 | M5X22 | 15 | 6 | |
| 71-D15M 5X30 1 | M5X27 | 15 | 6 | |
| 71-D15M 5X40 1 | M5X37 | 15 | 6 | |
| 71-D15M 5X50 1 | M5X47 | 15 | 6 | |
| 71-D15M 6X12 1 | M6X9 | 15 | 6 | |
| 71-D15M 6X14 1 | M6X11 | 15 | 6 | |
| 71-D15M 6X16 1 | M6X13 | 15 | 6 | |
| 71-D15M 6X20 1 | M6X17 | 15 | 6 | |
| 71-D15M 6X25 1 | M6X22 | 15 | 6 | |
| 71-D15M 6X30 1 | M6X27 | 15 | 6 | |
| 71-D15M 6X40 1 | M6X37 | 15 | 6 | |
| 71-D15M 6X50 1 | M6X47 | 15 | 6 | |
| 71-D15M 6X60 1 | M6X57 | 15 | 6 | |
| 71-D20M 4X10 1 | M4X8 | 20 | 5 | |
| 71-D20M 4X12 1 | M4X10 | 20 | 5 | |
| 71-D20M 4X16 1 | M4X14 | 20 | 5 | |
| 71-D20M 4X18 1 | M4X15 | 20 | 5 | |
| 71-D20M 4X20 1 | M4X18 | 20 | 5 | |
| 71-D20M 4X30 1 | M4X28 | 20 | 5 | |
| 71-D20M 5X12 1 | M5X9 | 20 | 5 | |
| 71-D20M 5X16 1 | M5X13 | 20 | 5 | |
| 71-D20M 5X20 1 | M5X17 | 20 | 5 | |
| 71-D20M 5X25 1 | M5X22 | 20 | 5 | |
| 71-D20M 5X30 1 | M5X27 | 20 | 5 | |
| 71-D20M 5X40 1 | M5X37 | 20 | 5 | |
| 71-D20M 5X50 1 | M5X47 | 20 | 5 | |
| 71-D20M 6X12 1 | M6X9 | 20 | 5 | |
| 71-D20M 6X14 1 | M6X11 | 20 | 5 | |
| 71-D20M 6X16 1 | M6X13 | 20 | 5 | |
| 71-D20M 6X20 1 | M6X17 | 20 | 5 | |
| 71-D20M 6X25 1 | M6X22 | 20 | 5 | |
| 71-D20M 6X30 1 | M6X27 | 20 | 5 | |
| 71-D20M 6X40 1 | M6X37 | 20 | 5 | |
| 71-D20M 6X50 1 | M6X47 | 20 | 5 | |
| 71-D20M 6X60 1 | M6X57 | 20 | 5 | |
| 71-D20M 8X16 1 | M8X12 | 20 | 6 | |
| 71-D20M 8X20 1 | M8X16 | 20 | 6 | |
| 71-D20M 8X25 1 | M8X21 | 20 | 6 | |
| 71-D20M 8X30 1 | M8X26 | 20 | 6 | |
| 71-D20M 8X40 1 | M8X36 | 20 | 6 | |
| 71-D20M 8X50 1 | M8X46 | 20 | 6 | |
| 71-D20M 8X60 1 | M8X56 | 20 | 6 | |
| 71-D25M 4X10 1 | M4X8 | 25 | 6 | |
| 71-D25M 4X16 1 | M4X14 | 25 | 6 | |
| 71-D25M 5X10 1 | M5X7 | 25 | 6 | |
| 71-D25M 5X16 1 | M5X13 | 25 | 6 | |
| 71-D25M 5X20 1 | M5X17 | 25 | 6 | |
| 71-D25M 5X25 1 | M5X22 | 25 | 6 | |
| 71-D25M 5X30 1 | M5X27 | 25 | 6 | |
| 71-D25M 5X40 1 | M5X37 | 25 | 6 | |
| 71-D25M 5X50 1 | M5X47 | 25 | 6 | |
| 71-D25M 6X12 1 | M6X9 | 25 | 6 | |
| 71-D25M 6X14 1 | M6X11 | 25 | 6 | |
| 71-D25M 6X16 1 | M6X13 | 25 | 6 | |
| 71-D25M 6X20 1 | M6X17 | 25 | 6 | |
| 71-D25M 6X25 1 | M6X22 | 25 | 6 | |
| 71-D25M 6X30 1 | M6X27 | 25 | 6 | |
| 71-D25M 6X40 1 | M6X37 | 25 | 6 | |
| 71-D25M 6X50 1 | M6X47 | 25 | 6 | |
| 71-D25M 8X16 1 | M8X12 | 25 | 6 | |
| 71-D25M 8X20 1 | M8X16 | 25 | 6 | |
| 71-D25M 8X25 1 | M8X21 | 25 | 6 | |
| 71-D25M 8X30 1 | M8X26 | 25 | 6 | |
| 71-D25M 8X35 1 | M8X31 | 25 | 6 | |
| 71-D25M 8X40 1 | M8X36 | 25 | 6 | |
| 71-D25M 8X50 1 | M8X46 | 25 | 6 | |
| 71-D25M 8X60 1 | M8X56 | 25 | 6 |
