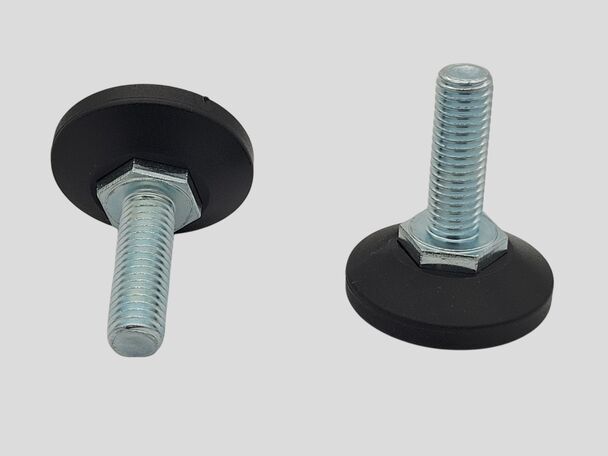

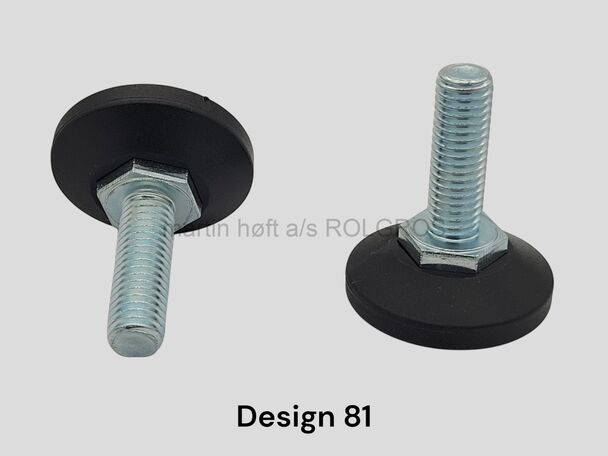

Dessin 81
Krydskærv i basebund for hurtig montering
Materiale: PA-Polyamid, Recycle Post Industrial
Vores skruer er ikke produceret af råmateriale fra Rusland
| SKU | Axial statisk belastning, kg | Gevind/Effektiv gevindlgd.(M/L) | Base diameter, (A) | Nøglevidde 6 kt. (SW) | Base højde, (B) | |
|---|---|---|---|---|---|---|
| 81-D38M10X40 1 | 550 KG | M10X40 | 38 | 17 | 10 | |
| 81-D38M10X50 1 | 550 KG | M10X50 | 38 | 17 | 10 | |
| 81-D38M10X60 1 | 550 KG | M10X60 | 38 | 17 | 10 | |
| 81-D38M10X70 1 | 550 KG | M10X70 | 38 | 17 | 10 | |
| 81-D38M10X80 1 | 550 KG | M10X80 | 38 | 17 | 10 | |
| 81-D48M 8X100 1 | 400 KG | M8X100 | 48 | 13 | 10 | |
| 81-D48M 8X20 1 | 400 KG | M8X20 | 48 | 13 | 10 | |
| 81-D48M 8X25 1 | 400 KG | M8X25 | 48 | 13 | 10 | |
| 81-D48M 8X30 1 | 400 KG | M8X30 | 48 | 13 | 10 | |
| 81-D48M 8X40 1 | 400 KG | M8X40 | 48 | 13 | 10 | |
| 81-D48M 8X50 1 | 400 KG | M8X50 | 48 | 13 | 10 | |
| 81-D48M10X100 1 | 550 KG | M10X100 | 48 | 17 | 10 | |
| 81-D48M10X120 1 | 550 KG | M10X120 | 48 | 17 | 10 | |
| 81-D48M10X140 1 | 550 KG | M10X140 | 48 | 17 | 10 | |
| 81-D48M10X150 1 | 550 KG | M10X150 | 48 | 17 | 10 | |
| 81-D48M10X16 1 | 550 KG | M10X16 | 48 | 17 | 10 | |
| 81-D48M10X20 1 | 550 KG | M10X20 | 48 | 17 | 10 | |
| 81-D48M10X25 1 | 550 KG | M10X25 | 48 | 17 | 10 | |
| 81-D48M10X30 1 | 550 KG | M10X30 | 48 | 17 | 10 | |
| 81-D48M10X40 1 | 550 KG | M10X40 | 48 | 17 | 10 | |
| 81-D48M10X50 1 | 550 KG | M10X50 | 48 | 17 | 10 | |
| 81-D48M10X60 1 | 550 KG | M10X60 | 48 | 17 | 10 | |
| 81-D48M10X70 1 | 550 KG | M10X70 | 48 | 17 | 10 | |
| 81-D48M10X80 1 | 550 KG | M10X80 | 48 | 17 | 10 | |
| 81-D48M10X90 1 | 550 KG | M10X90 | 48 | 17 | 10 | |
| 81-D38M 8X100 1 | 400 KG | M8X100 | 38 | 13 | 10 | |
| 81-D38M 8X20 1 | 400 KG | M8X20 | 38 | 13 | 10 | |
| 81-D38M 8X25 1 | 400 KG | M8X25 | 38 | 13 | 10 | |
| 81-D38M 8X30 1 | 400 KG | M8X30 | 38 | 13 | 10 | |
| 81-D38M 8X40 1 | 400 KG | M8X40 | 38 | 13 | 10 | |
| 81-D38M 8X50 1 | 400 KG | M8X50 | 38 | 13 | 10 | |
| 81-D38M 8X60 1 | 400 KG | M8X60 | 38 | 13 | 10 | |
| 81-D38M 8X80 1 | 400 KG | M8X80 | 38 | 13 | 10 | |
| 81-D38M10X100 1 | 550 KG | M10X100 | 38 | 17 | 10 | |
| 81-D38M10X120 1 | 550 KG | M10X120 | 38 | 17 | 10 | |
| 81-D38M10X150 1 | 550 KG | M10X150 | 38 | 17 | 10 | |
| 81-D38M10X16 1 | 550 KG | M10X16 | 38 | 17 | 10 | |
| 81-D38M10X20 1 | 550 KG | M10X20 | 38 | 17 | 10 | |
| 81-D38M10X25 1 | 550 KG | M10X25 | 38 | 17 | 10 | |
| 81-D38M10X30 1 | 550 KG | M10X30 | 38 | 17 | 10 |
