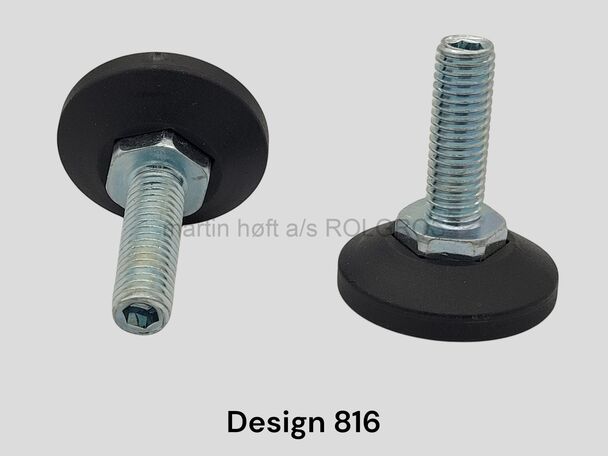

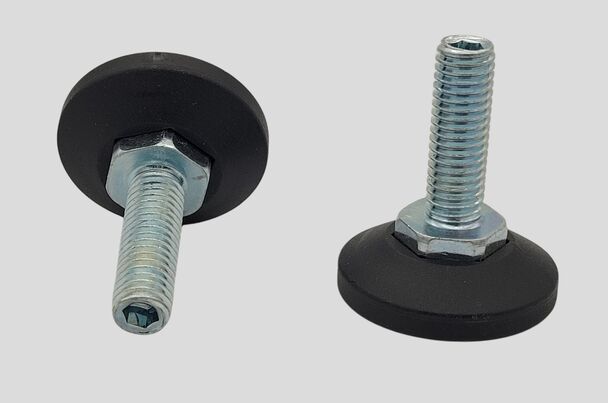

Dessin 816, 6 kt. i skruetop, NV4
Indvendig 6 kt. i skrue top, M8 NV4 and M10 NV5
Krydskærv i basebund for hurtig montering
Materiale: PA-Polyamid, Recycle Post Industrial
Vores skruer er ikke produceret af råmateriale fra Rusland
| SKU | Axial statisk belastning, kg | Gevind/Effektiv gevindlgd.(M/L) | Base diameter, (A) | Nøglevidde 6 kt. (SW) | Base højde, (B) | Nøglevidde, skrue top (sw) | |
|---|---|---|---|---|---|---|---|
| 816-D38M 8X30 1 | 400 KG | M8X30 | 38 | 13 | 10 | 4 | |
| 816-D38M 8X100 1 | 400 KG | M8X100 | 38 | 13 | 10 | 4 | |
| 816-D38M10X40 1 | 550 KG | M10X40 | 38 | 17 | 10 | 5 | |
| 816-D38M10X30 1 | 550 KG | M10X30 | 38 | 17 | 10 | 5 | |
| 816-D38M10X25 1 | 550 KG | M10X25 | 38 | 17 | 10 | 5 | |
| 816-D38M 8X50 1 | 400 KG | M8X50 | 38 | 13 | 10 | 4 | |
| 816-D38M10X50 1 | 550 KG | M10X50 | 38 | 17 | 10 | 5 | |
| 816-D38M10X60 1 | 550 KG | M10X60 | 38 | 17 | 10 | 5 | |
| 816-D48M10X25 1 | 550 KG | M10X25 | 48 | 17 | 10 | 5 | |
| 816-D48M10X30 1 | 550 KG | M10X30 | 48 | 17 | 10 | 5 | |
| 816-D48M10X40 1 | 550 KG | M10X40 | 48 | 17 | 10 | 5 | |
| 816-D48M10X50 1 | 550 KG | M10X50 | 48 | 17 | 10 | 5 | |
| 816-D48M10X60 1 | 550 KG | M10X60 | 48 | 17 | 10 | 5 |
