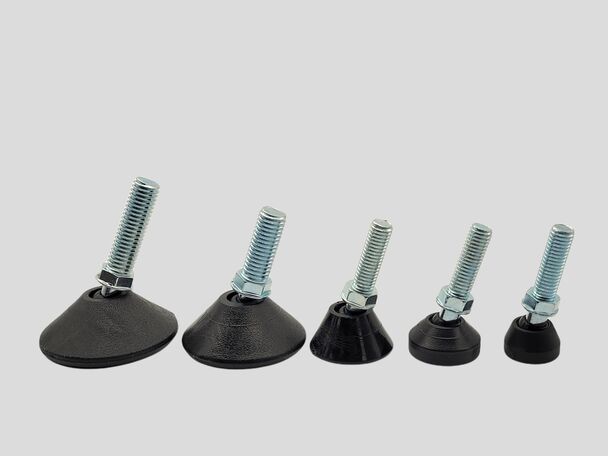

Dessin 94
| SKU | Gevind/Effektiv gevindlgd.(M/L) | Base diameter, (A) | Nøglevidde 6 kt. (SW) | Base højde, (B) | |
|---|---|---|---|---|---|
| 94D25M10X25 1/1 | M10X25 | 25 | 12 | 12 | |
| 94D30M 8X34 1 | M8X34 | 30 | 12 | 15 | |
| 94D25M 8X25 1 | M8X25 | 25 | 12 | 12 | |
| 94D25M10X25 1 | M10X25 | 25 | 12 | 12 | |
| 94D19M 8X25 1 | M8X25 | 19 | 12 | 11 | |
| 94D30M 8X25 1 | M8X25 | 30 | 12 | 15 | |
| 94D30M 8X50 1 | M8X50 | 30 | 12 | 15 | |
| 94D30M10X25 1 | M10X25 | 30 | 12 | 15 | |
| 94D30M10X34 1 | M10X34 | 30 | 12 | 15 | |
| 94D30M10X50 1 | M10X50 | 30 | 12 | 15 | |
| 94D30M12X20 1 | M12X20 | 30 | 14 | 15 | |
| 94D30M12X40 1 | M12X40 | 30 | 14 | 15 | |
| 94D30M12X80 1 | M12X80 | 30 | 14 | 15 | |
| 94D44M 8X25 1 | M8X25 | 44 | 12 | 18 | |
| 94D44M 8X34 1 | M8X34 | 44 | 12 | 18 | |
| 94D44M 8X50 1 | M8X50 | 44 | 12 | 18 | |
| 94D44M10X25 1 | M10X25 | 44 | 12 | 18 | |
| 94D44M10X34 1 | M10X34 | 44 | 12 | 18 | |
| 94D44M10X50 1 | M10X50 | 44 | 12 | 18 | |
| 94D44M12X20 1 | M12X20 | 44 | 14 | 18 | |
| 94D44M12X40 1 | M12X40 | 44 | 14 | 18 | |
| 94D44M12X80 1 | M12X80 | 44 | 14 | 18 | |
| 94D50M 8X25 1 | M8X25 | 50 | 12 | 18 | |
| 94D50M 8X34 1 | M8X34 | 50 | 12 | 18 | |
| 94D50M 8X50 1 | M8X50 | 50 | 12 | 18 | |
| 94D50M10X25 1 | M10X25 | 50 | 12 | 18 | |
| 94D50M10X34 1 | M10X34 | 50 | 12 | 18 | |
| 94D50M10X50 1 | M10X50 | 50 | 12 | 18 | |
| 94D50M12X20 1 | M12X20 | 50 | 14 | 18 | |
| 94D50M12X40 1 | M12X40 | 50 | 14 | 18 | |
| 94D50M12X80 1 | M12X80 | 50 | 14 | 18 |
