Fast stilleskrue med filt
Se de tre links med alle stilleskruer (dessin70, 706 og 71) med filt

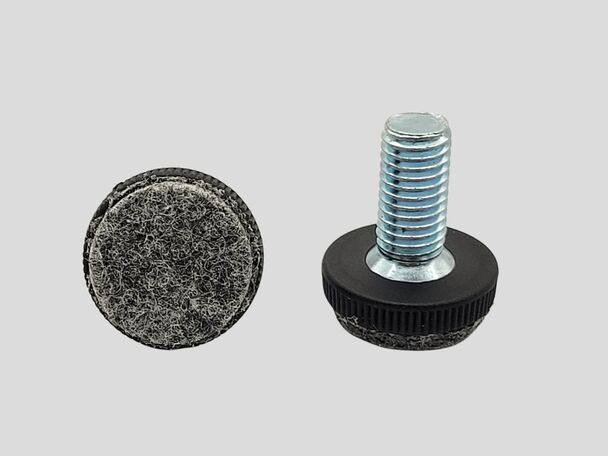

DESING 70F: Fast plasticbase med metalskrue i PA
DESING 706F: Fast plasticbase med metalskrue med inv. 6 kant i PA
DESING 71: Fast plasticbase med metalskrue i HDPE
| SKU | Gevind/Effektiv gevindlgd.(M/L) | Base diameter, (A) | Base højde, (B) | Filttykkelse | Nøglevidde, skrue top (sw) | |
|---|---|---|---|---|---|---|
| 70F-D25M 5x20 1 | M5X20 | 25 | 9 | 4 | ||
| 70F-D25M 5x40 1 | M5X40 | 25 | 9 | 4 | ||
| 70F-D25M 6X12 1 | M6X12 | 25 | 9 | 4 | ||
| 70F-D25M 6X16 1 | M6X16 | 25 | 9 | 4 | ||
| 70F-D25M 6X20 1 | M6X20 | 25 | 9 | 4 | ||
| 70F-D25M 6X25 1 | M6X25 | 25 | 9 | 4 | ||
| 70F-D25M 8X20 1 | M8X20 | 25 | 9 | 4 | ||
| 70F-D25M 8X25 1 | M8X25 | 25 | 9 | 4 | ||
| 70F-D25M 8X30 1 | M8X30 | 25 | 9 | 4 | ||
| 70F-D25M10X25 1 | M10X25 | 25 | 9 | 4 | ||
| 70F-D25M10X40 1 | M10X40 | 25 | 9 | 4 | ||
| 70F-D25M 8X40 1 | M8X40 | 25 | 9 | 4 | ||
| 70F-D29M 8X20 1 | M8X20 | 29 | 10 | 4 | ||
| 70F-D29M 6x20 1 | M6X20 | 29 | 10 | 4 | ||
| 70F-D32M 6X20 1 | M6X20 | 32 | 11 | 4 | ||
| 70F-D29M 8X30 1 | M8X30 | 29 | 10 | 4 | ||
| 70F-D32M 8X20 1 | M8X20 | 32 | 11 | 4 | ||
| 70F-D32M 8x25 1 | M8X25 | 32 | 11 | 4 | ||
| 70F-D32M 8x30 1 | M8X30 | 32 | 11 | 4 | ||
| 70F-D32M10X30 1 | M10X30 | 32 | 11 | 4 | ||
| 70F-D32M10x20 1 | M10X20 | 32 | 11 | 4 | ||
| 70F-d38M 6x20 1 | M6X20 | 38 | 12 | 4 | ||
| 70F-D32M10X40 1 | M10X40 | 32 | 11 | 4 | ||
| 70F-D32M10X60 1 | M10X60 | 32 | 11 | 4 | ||
| 70F-D38M 8X20 1 | M8X20 | 38 | 12 | 4 | ||
| 70F-D38M 8x25 1 | M8X25 | 38 | 12 | 4 | ||
| 70F-D38M 8X40 1 | M8X40 | 38 | 12 | 4 | ||
| 70F-D38M 8X301 | M8X30 | 38 | 12 | 4 | ||
| 70F-D38M10X25 1 | M10X25 | 38 | 12 | 4 | ||
| 70F-D44NM 6x20 1 | M6X20 | 44 | 13 | 4 | ||
| 70F-D38M10X30 1 | M10X30 | 38 | 12 | 4 | ||
| 70F-D38M10x50 1 | M10X50 | 38 | 12 | 4 | ||
| 70F-D44NM 8x20 1 | M8X20 | 44 | 13 | 4 | ||
| 70F-D44NM 8x25 1 | M8X25 | 44 | 13 | 4 | ||
| 70F-D44NM10X30 1 | M10X30 | 44 | 13 | 4 | ||
| 70F-D44NM 8x50 1 | M8X50 | 44 | 13 | 4 | ||
| 70F-D44NM10X40 1 | M10X40 | 44 | 13 | 4 | ||
| 70F-D44NM10X60 1 | M10X60 | 44 | 13 | 4 | ||
| 706F-D32M 8X20 1/1 | 8/16 | 32 | 8 | 4 | ||
| 706F-D32M 8X30 1 | 8/26 | 32 | 8 | 4 | ||
| 706F-D44NM10X50 1 | 10/44 | 44 | 10 | 4 | ||
| 71F-D12M 5X10 1 | M5X10 | 12 | 9 | 4 | ||
| 71F-D12M 5X12 1 | M5X12 | 12 | 9 | 4 | ||
| 71F-D12M 5X20 1 | M5X20 | 12 | 9 | 4 | ||
| 71F-D12M 5X25 1 | M5X25 | 12 | 9 | 4 | ||
| 71F-D15M 5X20 1 | M5X20 | 15 | 9 | 4 | ||
| 71F-D15M 6X10 1 | M6X10 | 15 | 9 | 4 | ||
| 71F-D15M 6x12 1 | M6X12 | 15 | 9 | 4 | ||
| 71F-D15M 6x16 1 | M6X16 | 15 | 9 | 4 | ||
| 71F-D15M 6x50 1 | M6X50 | 15 | 9 | 4 | ||
| 71F-D15M 6x20 1 | M6X20 | 15 | 9 | 4 | ||
| 716F-D20M 8X20 1/1 | M8X20 | 20 | 9 | 4 | ||
| 71F-D20M 6X20 1 | M6X20 | 20 | 9 | 4 | ||
| 71F-D20M 6X16 1 | M6X16 | 20 | 9 | 4 | ||
| 71F-D20M 8X16 1 | M8X16 | 20 | 9 | 4 | ||
| 71F-D20M 6X30 1 | M6X30 | 20 | 9 | 4 | ||
| 71F-D25M 8X16 1 | M8X16 | 25 | 9 | 4 | ||
| 71F-D25M 8X40 1 | M8X40 | 25 | 9 | 4 | ||
| 70F-D25M 6X50 1 | M6X47 | 25 | 6 | 4 | ||
| 70F-D32M10X25 1 | M10X19 | 32 | 13 | 4 | ||
| 70F-D38M10X40 1 | M10X34 | 38 | 14 | 4 | ||
| 706F-D32M10X40 1 | M10X34 | 32 | 13 | 4 | 4 | |
| 706F-D38M10X40 1 | M10X34 | 38 | 14 | 4 | 4 | |
| 706F-D29M10X30 1 | M10X24 | 29 | 12 | 4 | 4 | |
| 706F-D25M10x25 1 | 10/19 | 25 | 6 | 4 | 4 | |
| 706F-D29M10X40 1 | 10/34 | 29 | 7 | 4 | 4 |
